In this page, we'll be going over how to constrain sprockets to wheels.
Sprockets
Sprockets

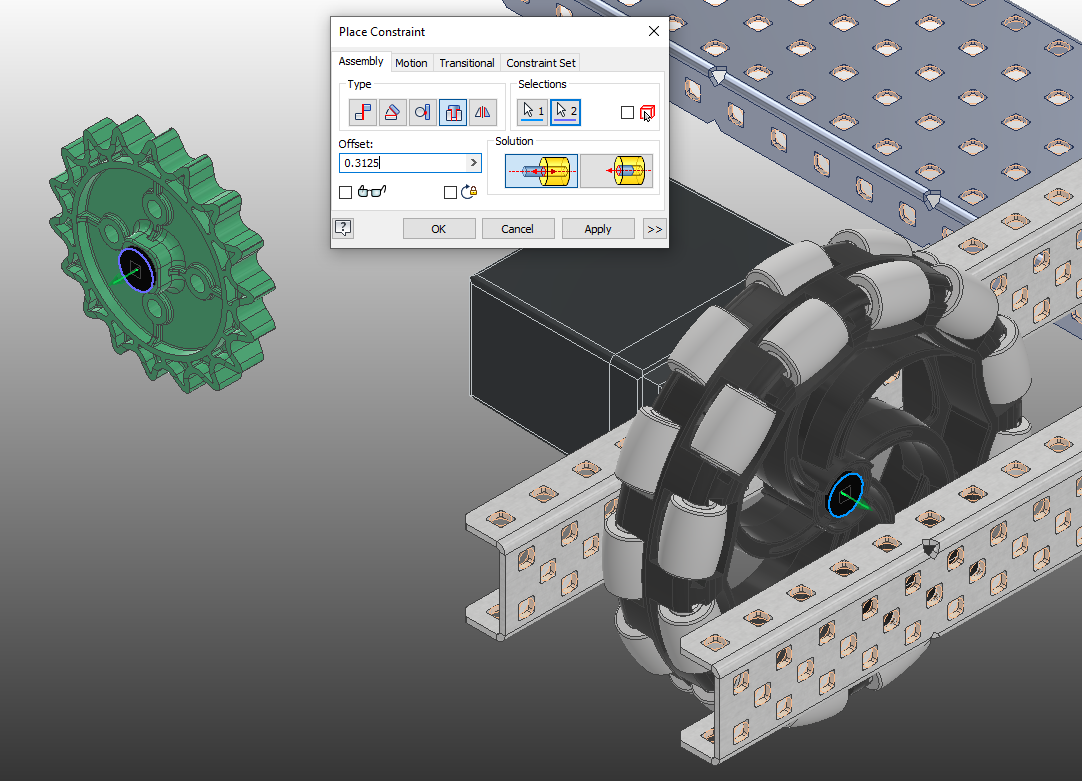

First we need to place them. We can find them in Motion/Sprockets/HS 18T Sprocket, square.ipt. This will get constrained with one insert constraint to the wheel, with an offset of 0.3125".
.png)
.png)

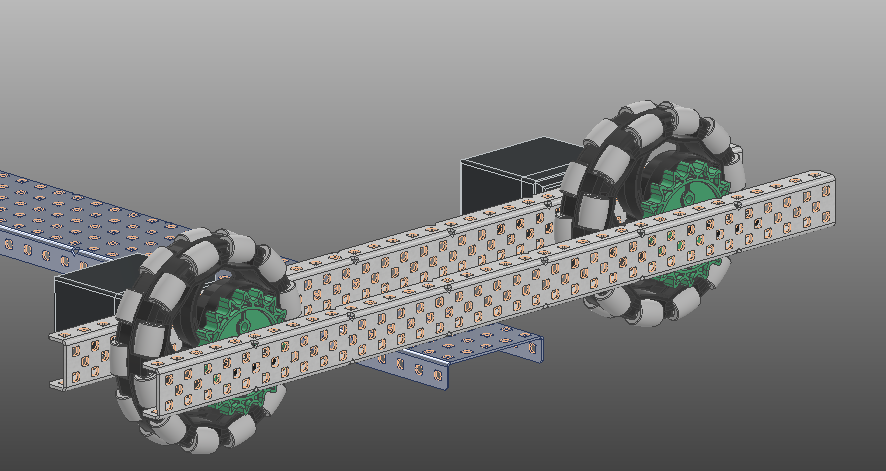

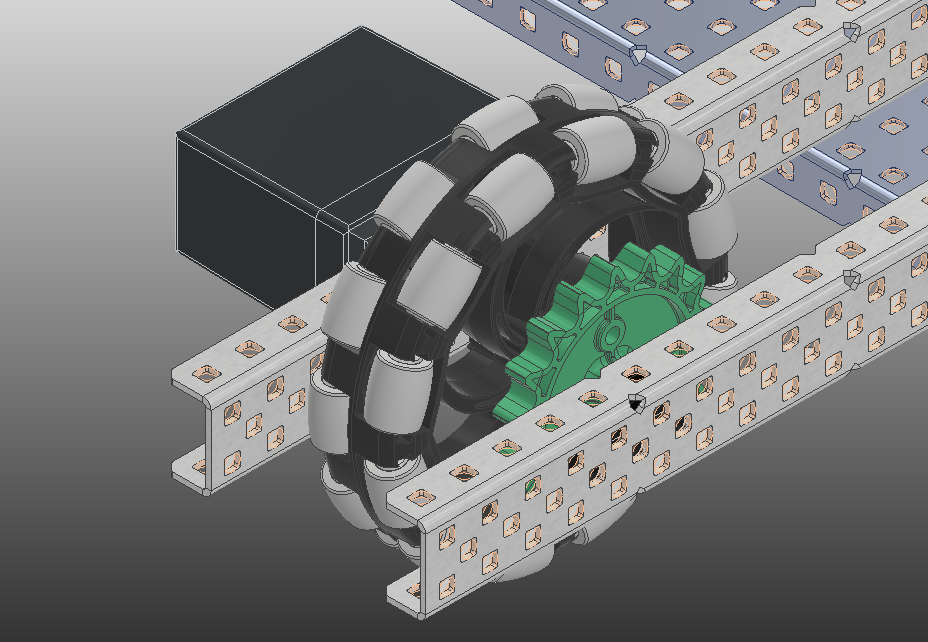

After placing a sprocket on each wheel it should look like this.
.png)
Note: Remember to save!
