In this page, we'll be going over how to constrain bearings to c-channels.
Bearing Flats
Bearing Flats
First we need to place them. We can find them in Motion/Bearing Flat.ipt.

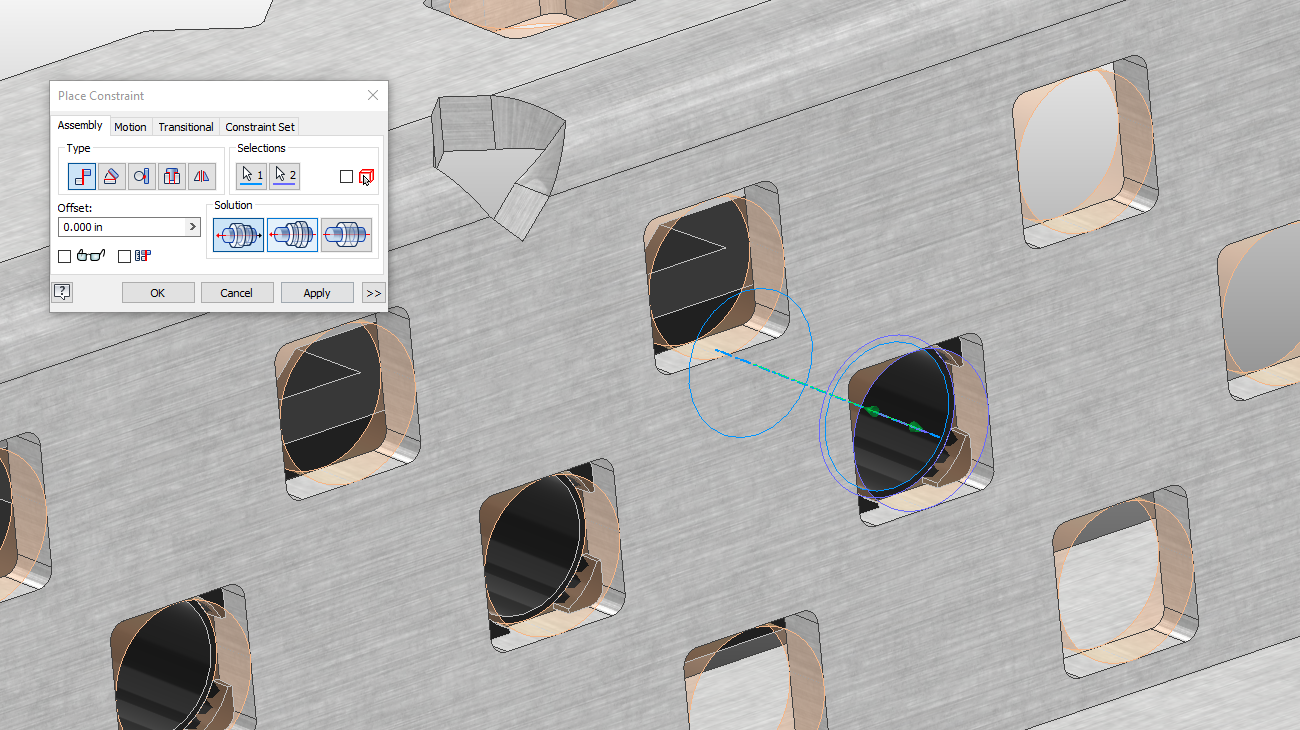

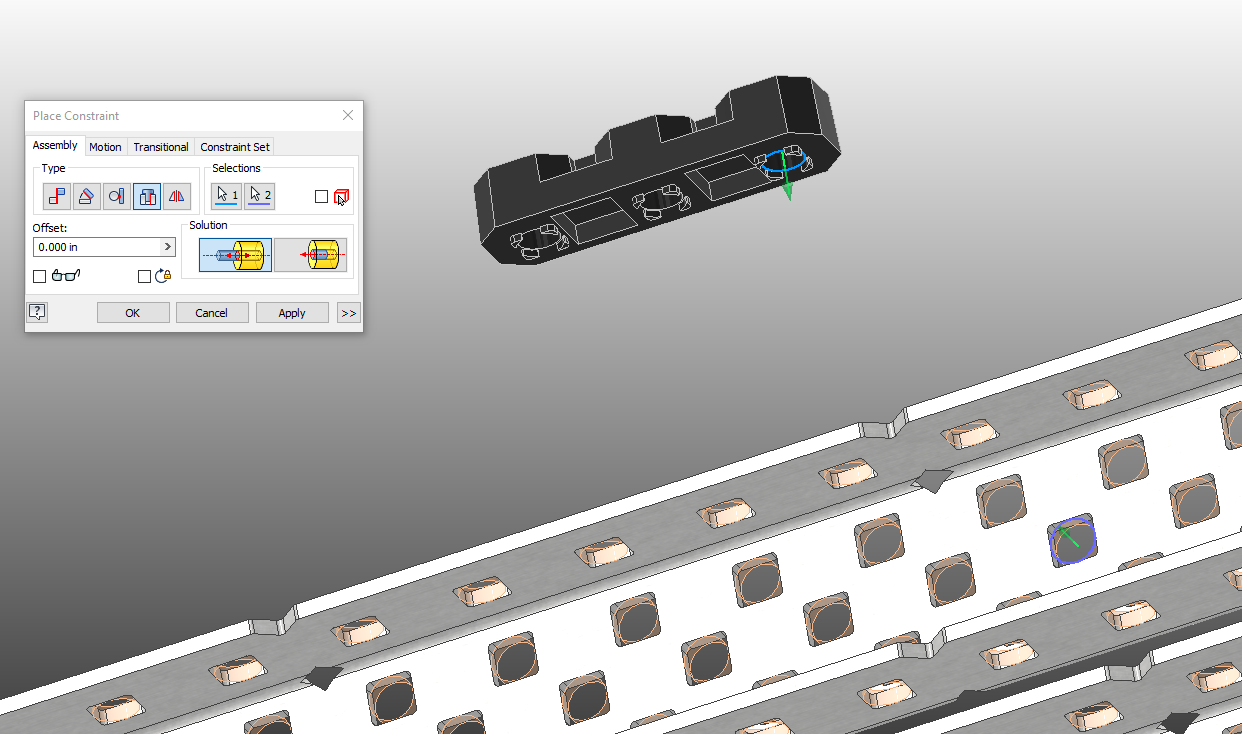

After placing it, we constrain them the same way we did two c-channels together. One insert and one mate constraint.
.png)
.png)

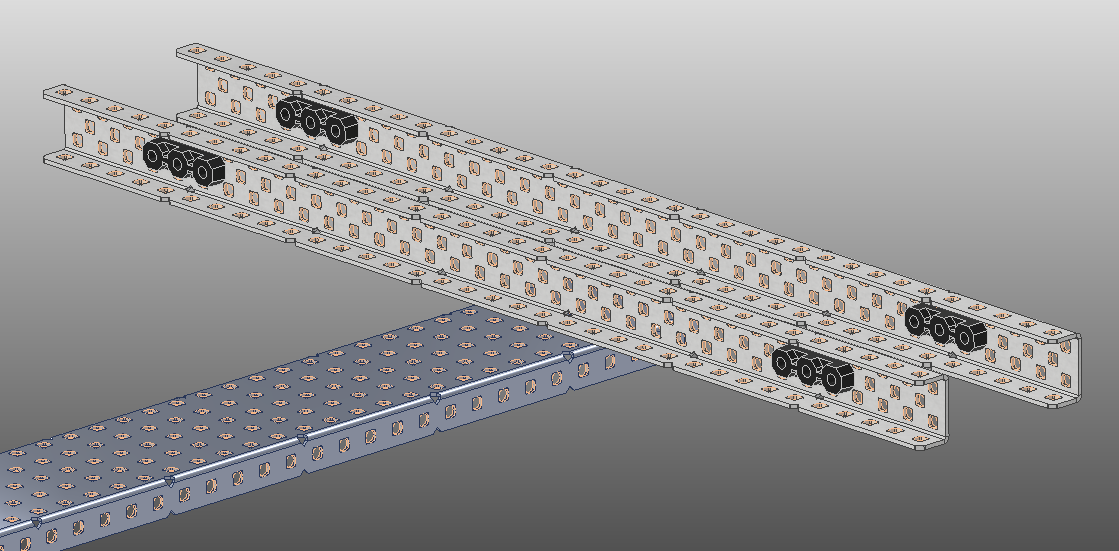

After placing bearings where my wheels are going to go,
.png)
Note: Remember to save!
