The Raspberry Pi is a series of small single-board computers developed by the Raspberry Pi Foundation
Raspberry Pi
Raspberry Pi 4
Features
The speed and performance of the new Raspberry Pi 4 is a step up from earlier models. The fanless, energy-efficient Raspberry Pi runs silently and uses far less power than other computers. Raspberry Pi 4 comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth. The new Raspberry Pi 4 has upgraded USB capacity: along with two USB 2 ports there are two USB 3 ports, which can transfer data up to ten times faster. The Raspberry PI 4 has support for up to two 4K displays through its two Micro HDMI Ports.
Specifications
| Spec | Raspberry Pi 4 B | Raspberry Pi 3 B+ |
|---|---|---|
| CPU | 1.5-GHz, Quad-Core Broadcom BCM2711B0 (Cortex A-72) | 1.4-GHz, Quad Core Broadcom BCM2837B0 (Cortex A-53) |
| RAM | 1 - 4GB DDR4 | 1GB DDR2 |
| GPU | 500 MHz VideoCore VI | 400 MHz VideoCore IV |
| Video Out | dual micro HDMI ports | single HDMI port |
| Max resolution | 4K 60 Hz + 1080p or 2x 4K 30 Hz | 2560 x 1600 |
| USB Ports | 2x USB 3.0 / 2x USB 2.0 | 4x USB 2.0 |
| Wired Networking | Gigabit Ethernet | 330 Mbps Ethernet |
| Wireless | 802.11ac (2.4 / 5 GHz), Bluetooth 5.0 | 802.11ac (2.4 / 5 GHz), Bluetooth 4.1 |
| Charging Port | USB Type-C | micro USB |
| Power Requirement | 3A, 5V | 2.5A, 5V |
| Size | 3.5 x 2.3 x 0.76 inches (88 x 58 x 19.5mm) | 3.2 x 2.2 x 0.76 inches (82 x 56 x 19.5mm) |
| Weight | 0.1 pounds (46 grams) | 0.11 pounds (50 grams) |

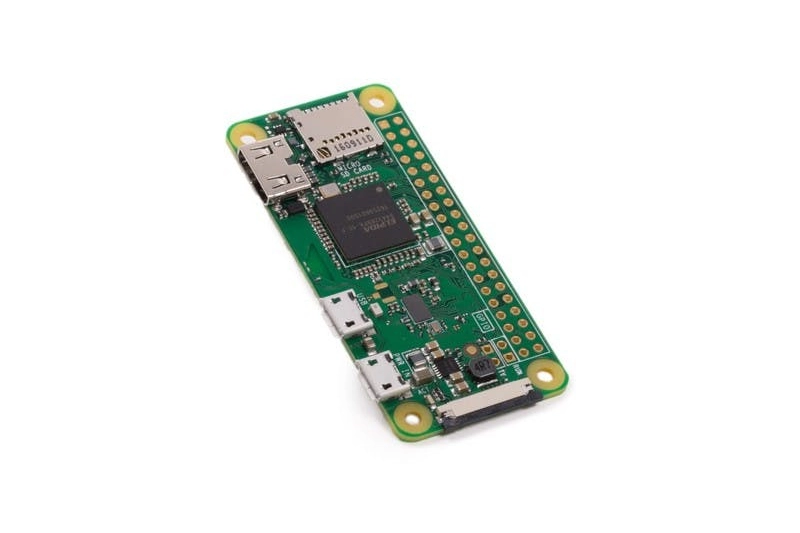

Raspberry Pi Zero W
%20(1).webp)
Features
The Raspberry Pi Zero W extends the Pi Zero family. Launched at the end of February 2017, the Pi Zero W has all the functionality of the original Pi Zero, but comes with with added connectivity, consisting of:
- 802.11 b/g/n wireless LAN
- Bluetooth 4.1
- Bluetooth Low Energy (BLE)
Like the Pi Zero, it also has:
- 1GHz, single-core CPU
- 512MB RAM
Specifications
| Spec | |
|---|---|
| CPU | Broadcom BCM2835 application processor, 1GHz ARM11 core (40% faster than Raspberry Pi 1) |
| RAM | 512MB of LPDDR2 SDRAM |
| Storage | A micro-SD card slot |
| Video Output | A mini-HDMI socket for 1080p60 video output |
| Power | Micro-USB sockets for data and power |
| GPIO | Un-populated 40-pin GPIO header (same pinout as Model A+/B+/2B/3B) |
| Connectivity | 2.4GHz 802.11 b/g/n Wi-Fi, Bluetooth 4.1 LE |
